Performances |
Parameters |
|
|
Suitable material |
Galvanized coil |
|
|
Material size and thickness |
Thickness:0.55-0.9mm |
|
|
Productivity |
Up to 15m/min |
|
|

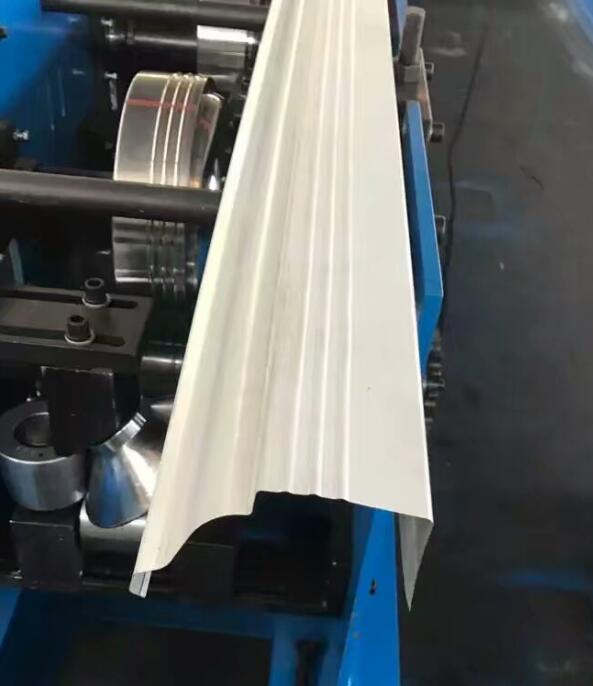

Roller forming steps |
19 steps forming rollers |
|
|
Roller material |
No.45# steel after quenching and with chromium. |
|
|
Diameter of active shaft |
Φ65mm |
|
|
Main machine structure |
350H |
|
|
Wall plate |
14mm |
|
|
Power |
5.5KW main motor,cycloidal reducer work stable and no noise |
|
|

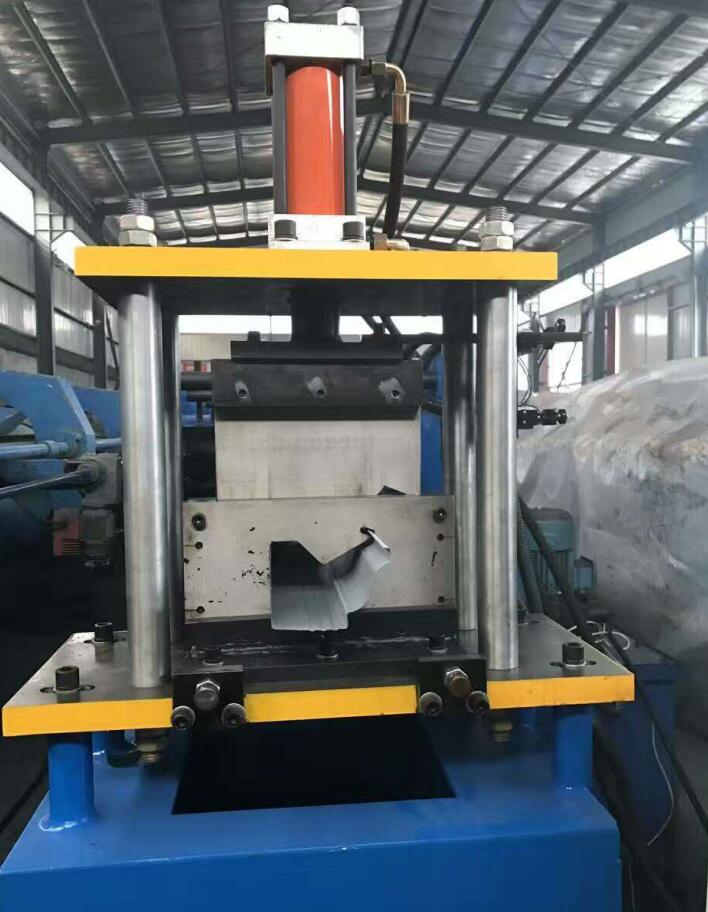

Shear |
Hydraulic shear, cutting automatically, blade material CR12, Blade will not damage the profile, before machine leave factory, we test the machine and rolling the panel many times. |
|
|
Transmission |
1’’ chain hanging inside of main structure |
|
|
Control system |
Delta PLC computer control system with Delta inverter to ensure precision; Winwen color touch screen. Program is made by English. working mode: automatic and manual . We insert the program into the PLC already . We will test machine with the Control system here before machine leave factory. |
|
|
Hydraulic system |
3kw hydraulic motor and large oil pump |
|
|
Voltage |
440V/3 phase/60hz |
|
|
Set off table |
Two pcs, 5 step roller and adjustable screw, each is 3000mm long |
|
|
Size(length*width*height) |
9000*800*900MM |
|
|
Weight |
4500kgs |
|
|
Component |
Upgrade manual decoiler-forming part-shear blade device--hydraulic system-PLC computer control cabinet-set off table |
|
