stud and stack rollformer

Product Name:

stud and stack rollformer

No. :

Product Description:

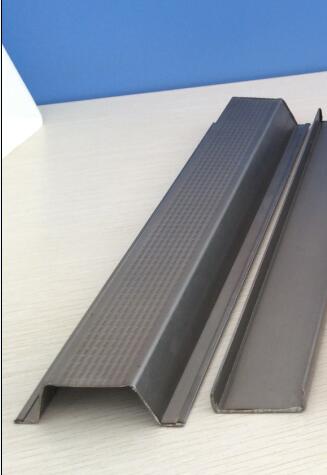

stud and stack rollformer for Colombia market

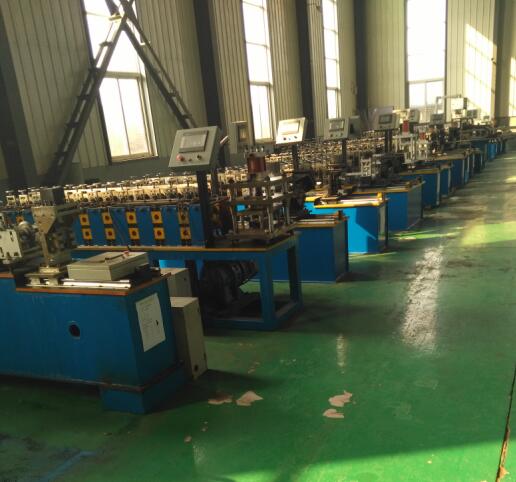

we are factory and specialized in all kind of stud and stack rollforming machine

Performances	Parameters
Suitable material	galvanized coil ASTM A653
Material size and thickness	Size:2020mm,2525mm, 2030mm,2040mm Thickness:0.35mm, 0.38mm, 0.40mm, 0,42mm
Productivity	40m/min
Roller forming steps	9 steps
Roller material	CR12
Diameter of active shaft	Φ40mm
Shaft material	High grade 45# steel, quenching and tempering treatment
Main machine structure	High grade steel sheet welding
Wall plate	16mm
Power	3KW main servo motor,cycloidal reducer work stable and no noise

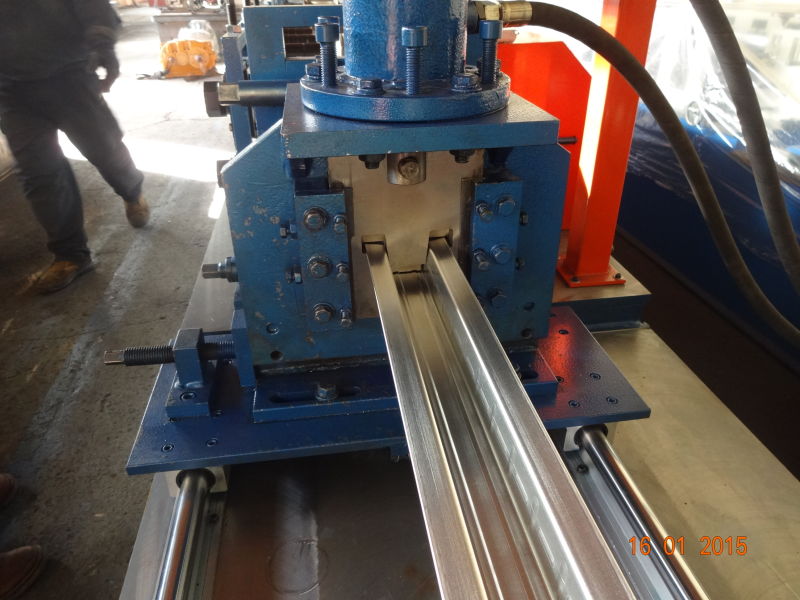

Shear	Hydraulic shear cutting controlled by PLC, blade material CR12
Transmission	Drive by gear.
Control system	Delta PLC computer control system with Delta inverter to ensure precision; color touch screen. Program is made by English, working mode: automatic and manual
Hydraulic system	3kw hydraulic motor
Voltage	440V/3 phase/60hz
Set off table	yes
Size(lengthwidthheight)	45006001200MM
Weight	About 2500kgs
Component	Upgrade manual decoiler-forming part-shear blade device--hydraulic system-PLC computer control cabinet-set off table
