10 Ton Lateral moving hydraulic auto decoiler

Product Name:

10 Ton Lateral moving hydraulic auto decoiler

No. :

Product Description:

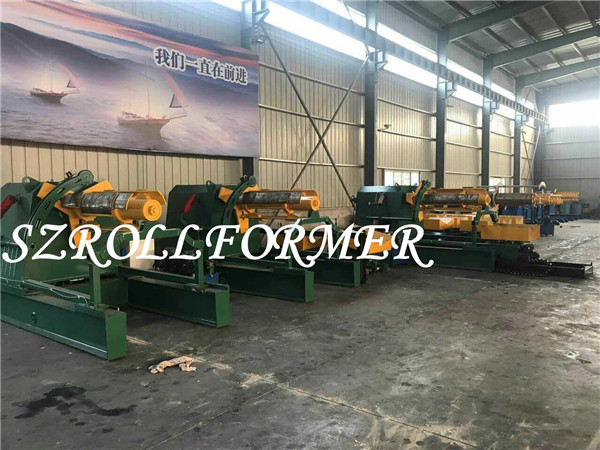

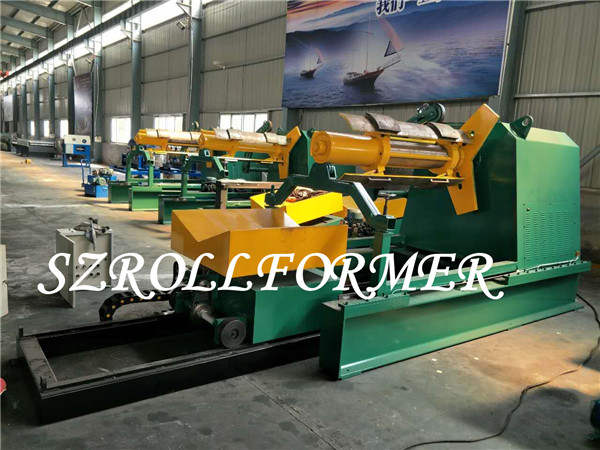

10 Ton Lateral moving hydraulic auto decoiler

we are factory and are capable of designing uncoiler size as your need.

Machine parameters:

1. suitable coil width ≤1300mm

2. uncoiler Size （L*W*H）:4300*1600*1900mm

3. Main motor power:5.5kw

4. Hydraulic system : pump motor is 4 kw

5. Tolerate weight≤10T

6. Inner diameter:480-560mm

7. Carriage life oil cylinder diameter: 125mm

8. Up and down strok cylinder:250mm

9. Max working speed :30m/min

10.Weight About: 4000kgs

11.working mode: automatically

12. Voltage: 3phase 440v 60hz or as your need

13. with Auxiliary support: yes

14. main uncoiler move size: left and right 250mm

15. Auto uncoiler with carriage components:

uncoiler-hydraulic system--electric box with inverter- carriage

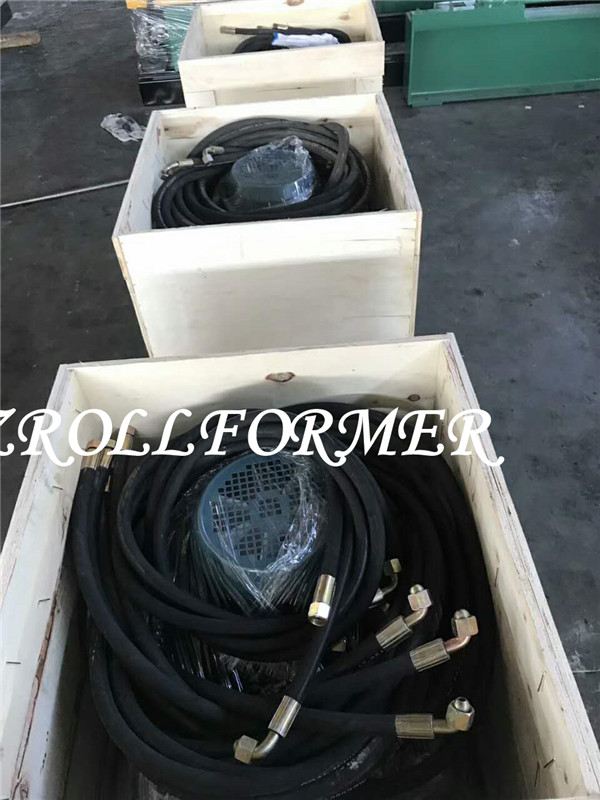

spare parts we bring for you free

1. button, two 2. switch, two 3. limit switch: two

4. Electrical insurance: two 5.air switch: two 6. machine paint: one small box

7. Solenoid valve:two 8 . Machine install and operation manual: one

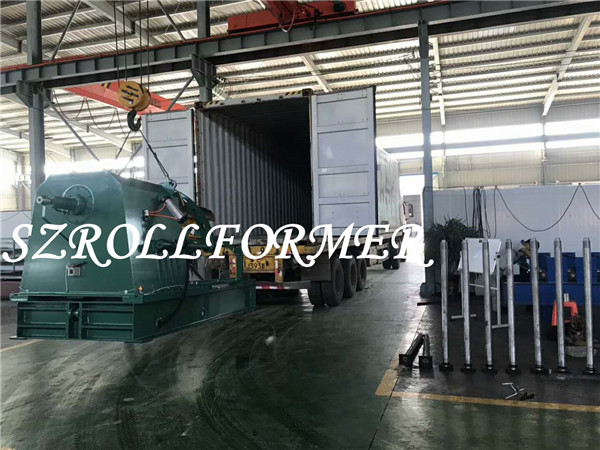

machine loading pic
