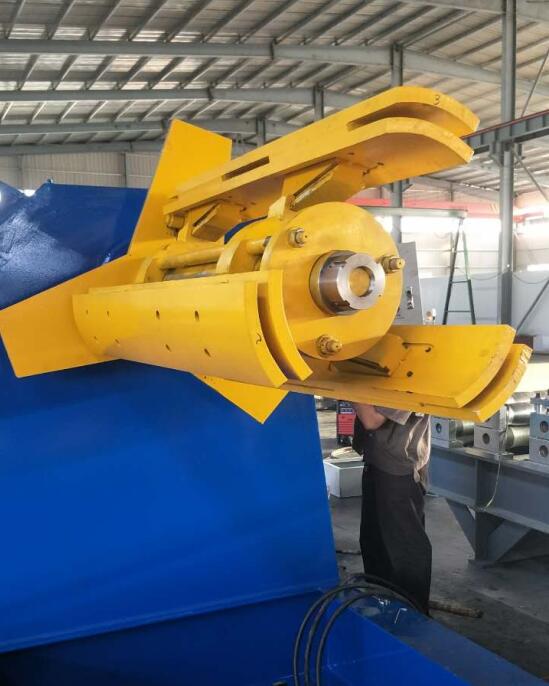

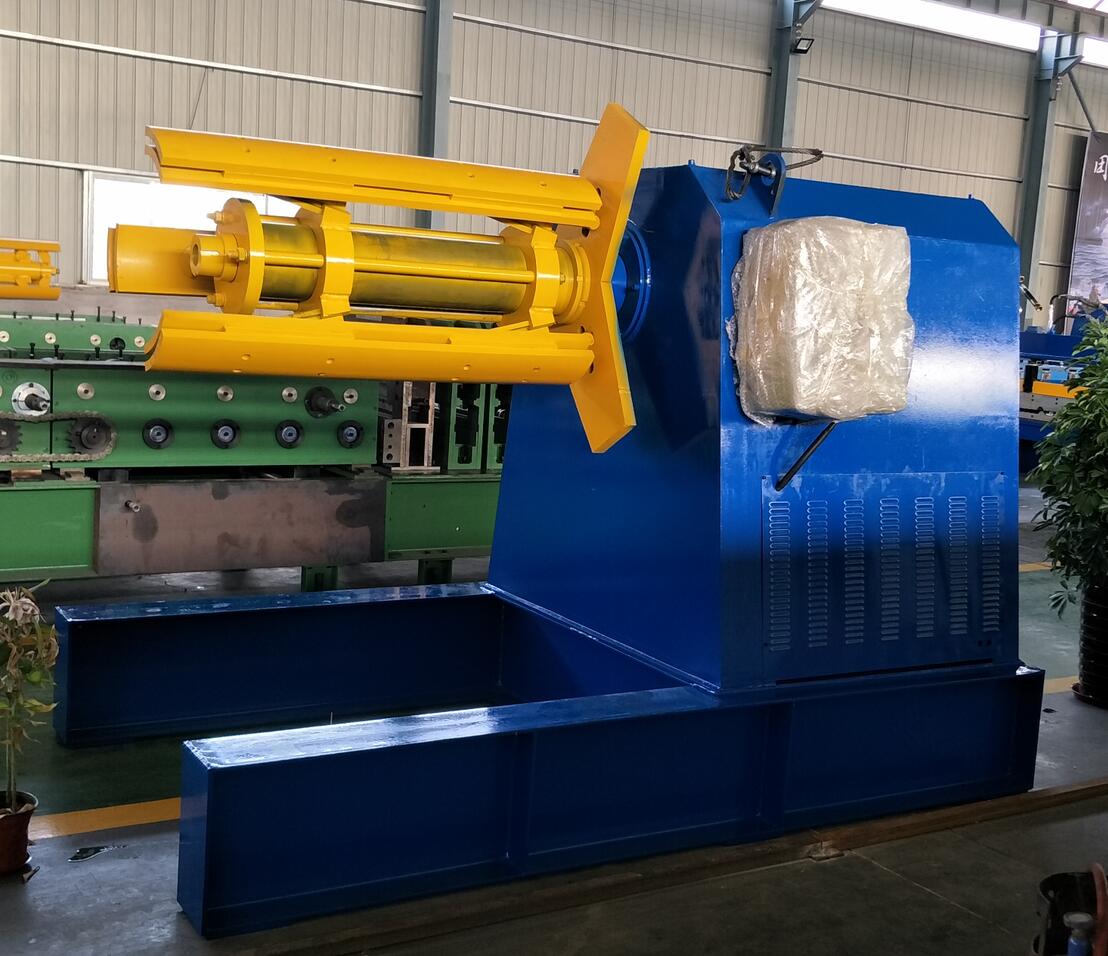

10 Ton auto decoiler with car for roof machine

Product Name:

10 Ton auto decoiler with car for roof machine

No. :

Product Description:

10 Ton auto decoiler with car for roof machine

Machine parameters:

1. suitable coil width ≤1300mm

2. uncoiler Size （L*W*H）:4300*1600*1900mm

3. Main motor power:5.5kw

4. Hydraulic system : pump motor is 4 kw

5. Tolerate weight≤10T

6. Inner diameter:480-560mm. this size can be changed as your coil max inner dia.

7. Carriage life oil cylinder diameter: 125mm

8. Up and down strok cylinder:250mm

9. Max working speed :30m/min

10.Weight About: 4000kgs

11.working mode: automatically

12. Voltage: 3phase 440v 60hz or as your voltage

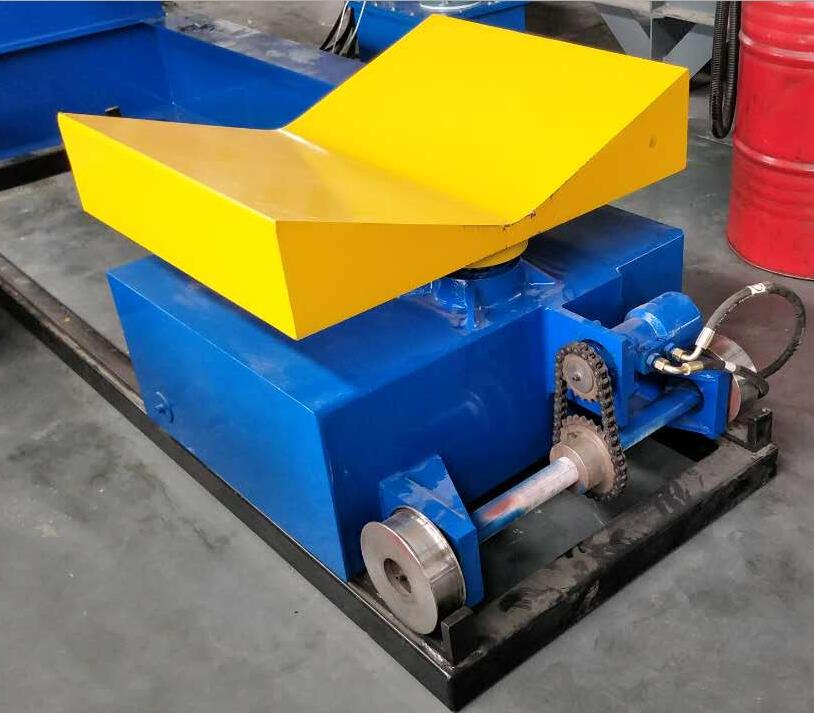

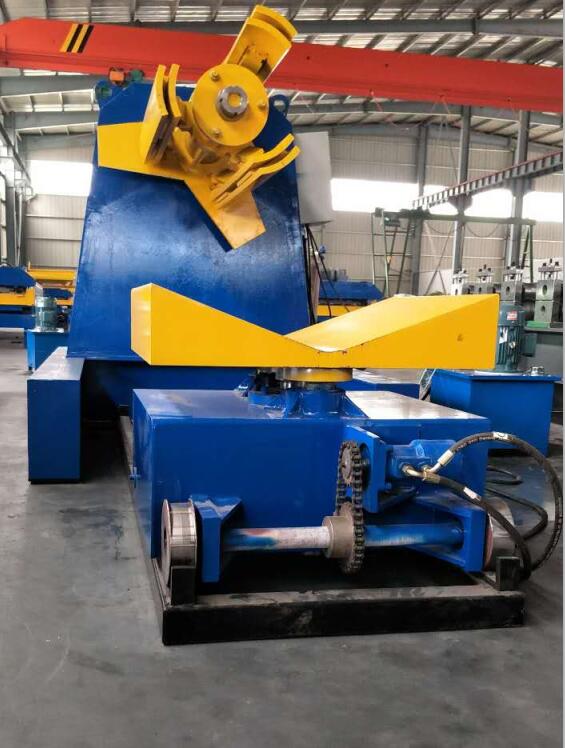

13. Auto uncoiler with carriage components:

uncoiler-hydraulic system--electric box with inverter- carriage
