Custom Designed and built
We are a roll forming machine manufacturer of custom made basis, please send us your panel profile or sample!
|
No. |
Main parameters |
|
|
1 |
Suitable material |
Colored coil. Galvanized coil, aluminum coil, Zinc coil and so on |
|
2 |
Forming roller steps |
11 or 13 |
|
3 |
Roller material |
45# steel after hot treatment |
|
4 |
Main shaft diameter |
Φ70mm |
|
5 |
Main power |
4+3KW |
|
6 |
Voltage |
3 phase/220-240v/60hz or as your need |
|
7 |
Main structure |
350H steel |
|
8 |
Transmission chain |
1’’ |
|
9 |
Control system |
PLC control box |
|
10 |
Main electric parts |
Omron or Panasonic |
|
11 |
Working speed |
15-20m/min |
|
12 |
Working mode |
Fully automatic |
|
13 |
Shear blade material |
Cr12 |
|
14 |
Panel precision error |
0.01mm |
|
15 |
Machine weight |
About 4 Ton |
|
16 |
Machine size |
6500*1250*1300mm(L*W*H) |
Service
|
1.We provide the technical support for whole life. 2.Meanwhile, if any parts go broken and not artificial damage, we will send you new ones for free. 3.When need the technician to go abroad, we will arrange the technician.But the buyer should take all the cost, including Visa, Roundtrip ticket,suitable accommodation and pay the service fee to the technician with $80-100/days |

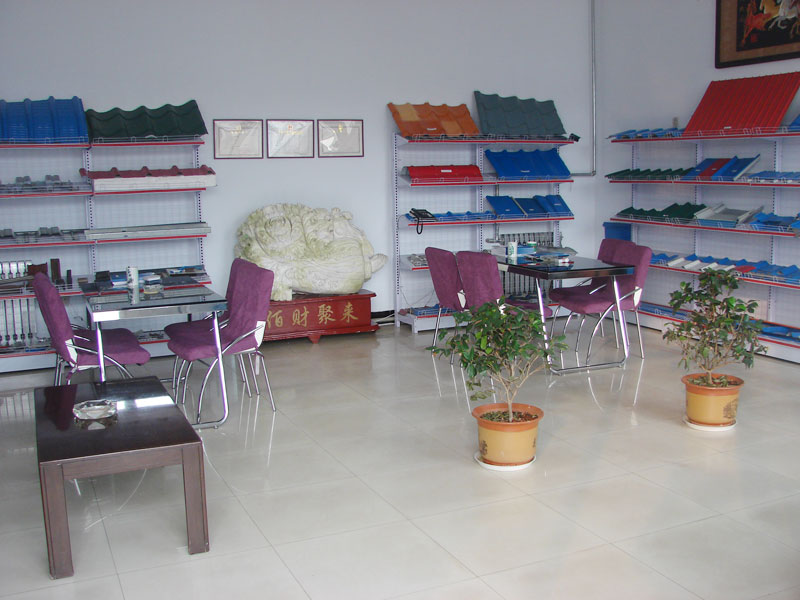

our sample room
