This machine is fully automatic. it does not need worker to adjust rollers to get different sizes. All is finished by insert number on PLC control system.
Then machine finish size changing automatically and error is 1mm.
Machine panel size
|

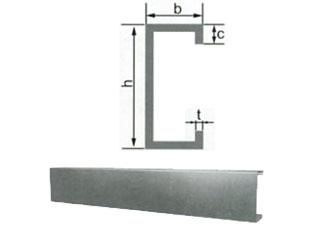

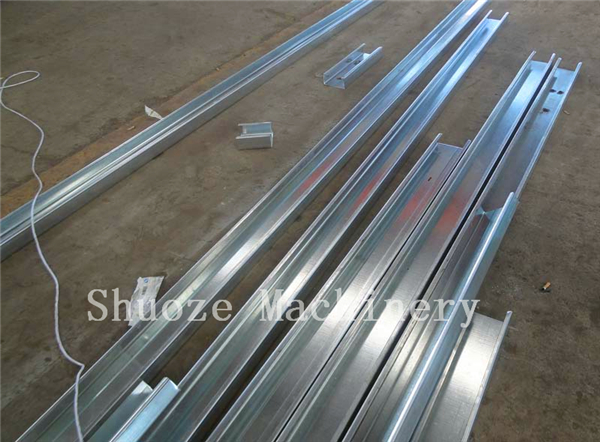

C Purlin Dimensions Table |
|||||
|
Model |
Section Sizes(mm) |
Hole Distance(mm) |
|||
|
h |
b |
c |
t |
||
|
C80 |
80 |
40 |
15 |
2.0-3.0 |
No Hole |
|
C100 |
100 |
50 |
20 |
2.0-3.0 |
40 |
|
C120 |
120 |
50 |
20 |
2.0-3.0 |
Changable |
|
C140 |
140 |
50 |
20 |
2.0-3.0 |
Changable |
|
C160 |
160 |
60 |
20 |
2.0-3.0 |
Changable |
|
C180 |
180 |
60 |
20 |
2.0-3.0 |
Changable |
|
C200 |
200 |
60 |
20 |
2.0-3.0 |
Changable |
|
C220 |
220 |
70 |
20 |
2.0-3.0 |
Changable |
|
C250 |
250 |
70 |
20 |
2.0-3.0 |
Changable |
|
C300 |
300 |
80 |
20 |
2.0-3.0 |
Changable |
Note: we are capable of designing machine as your C purlin size.
C purin roll forming machine parameters
|
Performances |
Parameters |
|
|
Suitable material |
Galvanized coils or as your need |
|
|
Material size and thickness |
Size:80-300mm or as your need. Thickness:1.5-3mm |
|
|
Productivity |
20-25m/min |
|
|
Roller forming parts |
Flatterning part: 11 steps (up 5 steps, bottom 6 steps) Guide shaft and guide wheel Main forming part: 13 steps Auxiliary Side rollers: 6 steps Alignment rollers: 2 steps Note: show you pics below |
|
|
Roller material |
GCT15 bearing steel after quenching and with chromium. |
|
|
Diameter of main forming active shaft |
Φ85mm |
|
|
Diameter of flatterning part shaft |
Φ100mm |
|
|
Shaft material |
45# steel CNC processing and heat treatment to 58-60° |
|
|
Main machine structure |
400H |
|
|
Wall plate |
30mm |
|
|
Power |
22KW hydraulic hose motor,work stable and high speed Size changement drived motor 0.75KW*4 pcs |
|
|
Hole punching |
Hole punching automatically. You can make single hole or double holes. |
|
|
Shear |
Hydraulic shear, cutting automatically and size changed by operate PLC system blade material CR12, |
|
|
Transmission |
2’’ chain |
|
|
Control system |
Delta PLC computer control system with Delta inverter to ensure precision; Winwen color touch screen. Program is made by English. working mode: automatic and manual . We insert the program into the PLC already . We will test machine with the Control system here before machine leave factory. |
|
|
Voltage |
440V/3 phase/60hz |
|
Manual decoiler |
Loading 5000kgs. |
|
Set off table |
Two pcs, 5 step roller and adjustable screw, each is 3000mm long |
|
Size(length*width*height) |
10500*2000*1200MM |
|
Weight |
About 6000kgs |
|
Component |

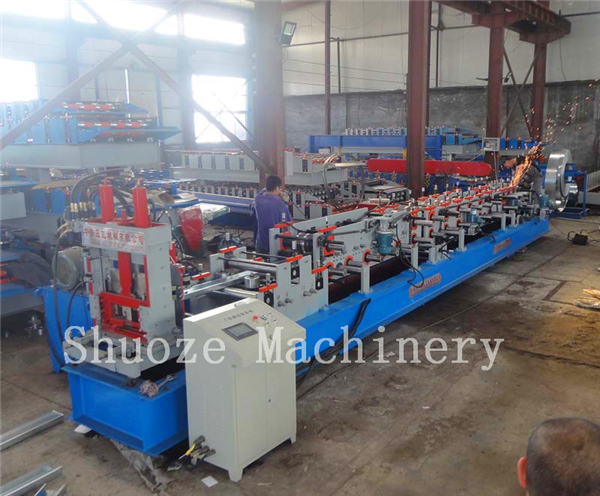

manual decoiler-forming part-hole making and shear blade device--hydraulic hose system-PLC computer control cabinet-set off table |
First part: main machine forming part

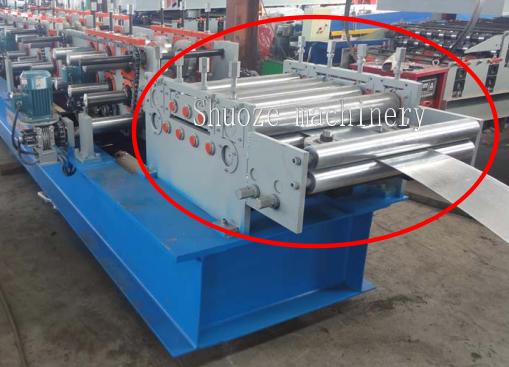

1. Flatterning shaft and wheel

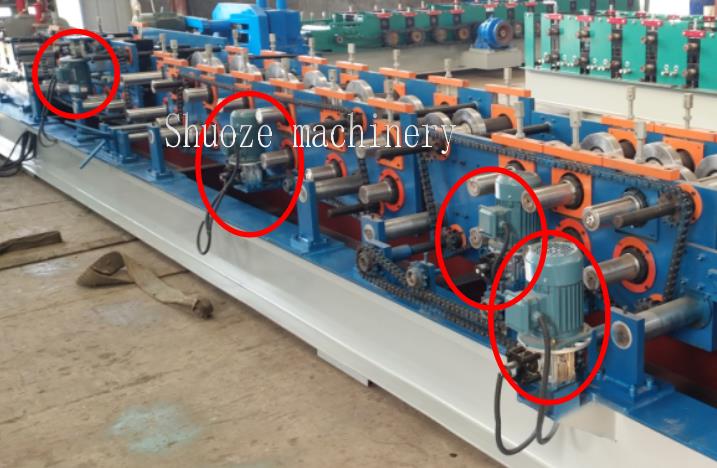

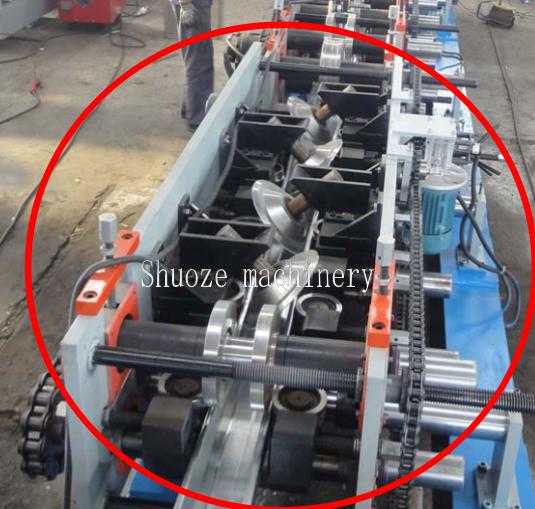

2. Auxiliary Side rollers: 6 steps

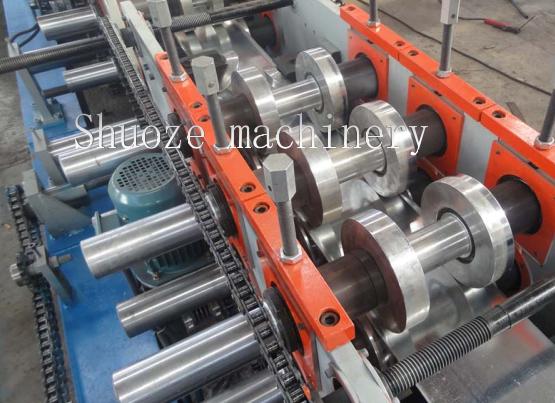

3. Main forming steps
4. Alignment rollers two steps to ensure C purlin is very straight.
Second part: hole making and cutting part

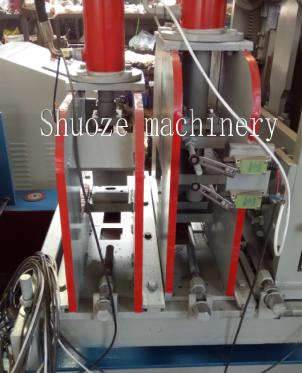

Shear mould do not need to change mould size. It finished on PLC control system.
Tell us the hole size you need to make

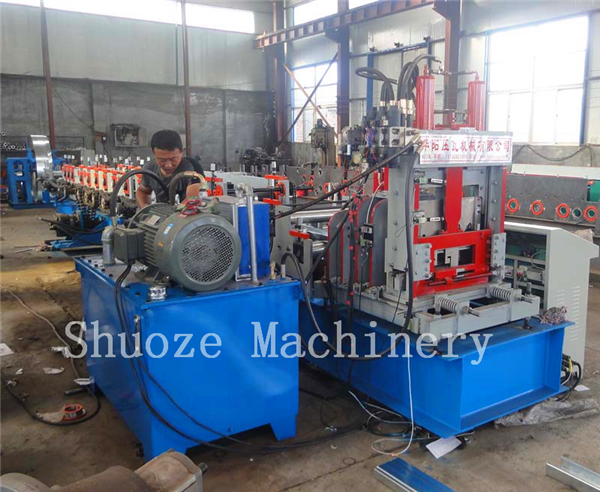

Third part: Hydraulic hose motor system
Power 22kW, ensure work stable and high speed
Fourth parts: PLC control system to control machine running ,Size changement drived motor 0.75KW*4 pcs
Fourth parts: PLC control system to control machine running ,

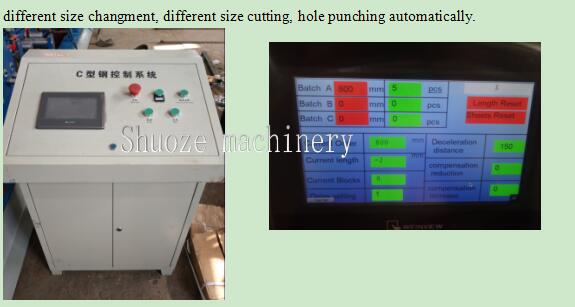

different size changment, different size cutting, hole punching automatically.

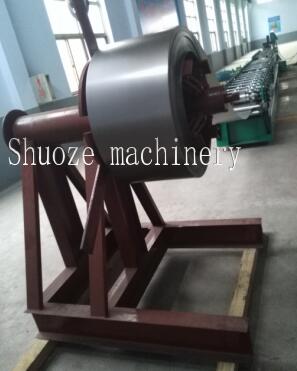

Fifth part. Manual decoiler. Loading coil weight 5000kgs
