840 Glazed Tile metal sheer forming machine
Product Name:
840 Glazed Tile metal sheer forming machine
No. :
Product Description:

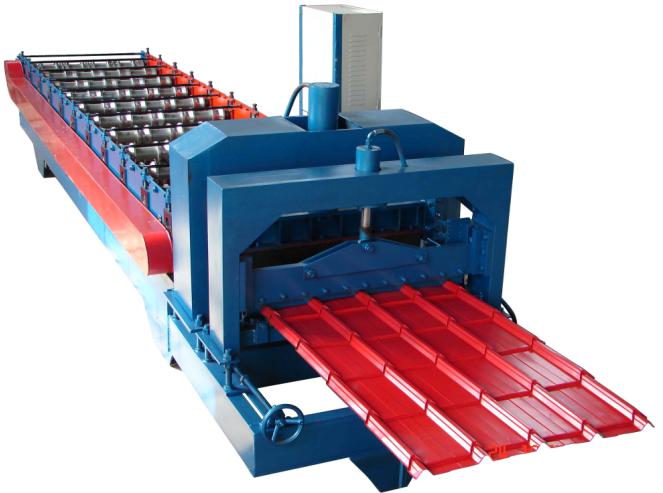

840 Glazed Tile metal sheer forming machine
1 This roll forming machine can roll forming metal panel which is mostly used with colorful roofing tile sheets.
After roll formed by this roll forming machine, the surface will be very smooth and beautiful without any scratch on surface.
After roll formed by this roll forming machine, the surface will be very smooth and beautiful without any scratch on surface.
2 we also can do a custom roll forming machine, We can design the machine according to your specification and profile
drawing.
3 This roll forming machine only can produce two type profile and can work with two types width coil 1000 and 1200mm

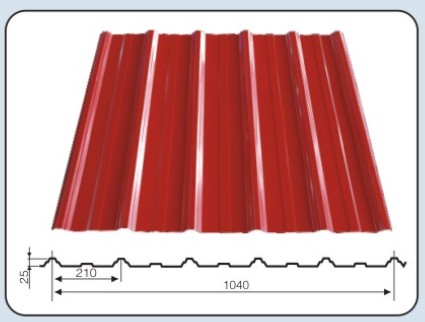

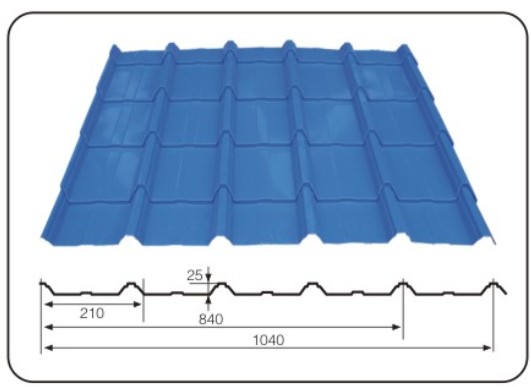

A. profile with size
A. profile with size
this machine can work on two types width coil 1000mm and 1200mm.
this machine can get two type panels
|
Wave height
|
25mm
|
|
Wave length
|
210mm
|
|
Cover width
|
840/1040mm
|
|
Coil width
|
1000/1200mm
|
|
Thickness of material plate
|
0.3-0.8mm
|
B parameters
|
No.
|
main parameter of roll forming machine
|
|
|
1
|
Suitable to process
|
Color steel plate/PPGI/galvanized sheet
|
|
2
|
Width of the plate
|
1000/1200mm
|
|
3
|
Rollers
|
13 rows
|
|
4
|
Dimensions
|
7000mm*1550mm*1510mm
|
|
5
|
Power
|
3+3kw
|
|
6
|
Thickness of the plate
|
0.3-0.8mm
|
|
7
|
Productivity
|
8-12m/min
|
|
8
|
Diameter of the roller
|
Φ70mm
|
|
9
|
Weight
|
About 4000kgs
|
|
10
|
Voltage
|
220V 60Hz single phase/380v 50hz 3phase
|
|
11
|
Material of the cutting plate
|
Cr12
|
|
12
|
Hydraulic
|
40# oil
|
|
13
|
Processing precision
|
Within 1.00mm
|
|
14
|
Control system
|
Delta PLC control
|
|
15
|
Whole machine work line
|
Uncoiler-roll forming machine part-hydraulic press part-hydraulic cutting device-set off table
|
C machine components
|
Machine components of Glazed Tile Metal Sheet Forming Machines
|
||||
|
No.
|
Name
|
Note
|
Set
|
|
|
1
|
Decoiler
|
Manual (Hydraulic for optional)
Loading weight: 5 -10 Ton
Max suitable coil width:1250mm
|
1
|
|
|
2
|
Feeding device
|
To guide coil into machine
|
1
|
|
|
3
|
Main roll forming
|
13 steps to form the desired profile
|
1
|
|
|
4
|
Hydraulic cut
|
Cut the desired length automatically
|
1
|
|
|
5
|
Hydraulic system
|
Provide power to cutting
|
1
|
|
|
6
|
PLC control box
|
All program is setted in it and it control the whole machine working automatically
|
1
|
|
|
7
|
Set off table
|
Get the formed panel which come out of the machine
|
6 meters
|
|
|
8
|
Machine legs
|
Added on machine to increase machine height for tall workers
|
4
|
|

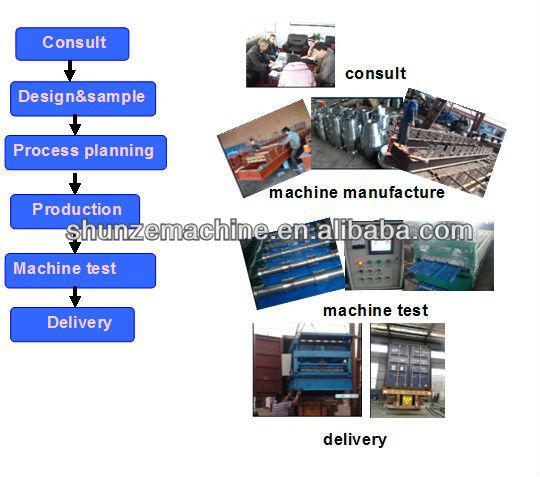

How to order:
we are good at custom made machines, kindly please send us your drawing or panel sample.
The countries we export to: France, Poland, Hungary, Russia, Kazakstan, America, Chili,
Brazil, Australia, Philippines, Singapore, Indonesia, India, Sri Lanka, Saudi Arabia, Turkey,Iran, Nigeria, Ethiopia and so on.
We are a roll forming machine manufacturer of custom made basis, please send us your panel profile or sample.
Warranty: one year after machine leave factory.
Service: 24 hours on line service. If you need us to send technician to your country, it is ok
