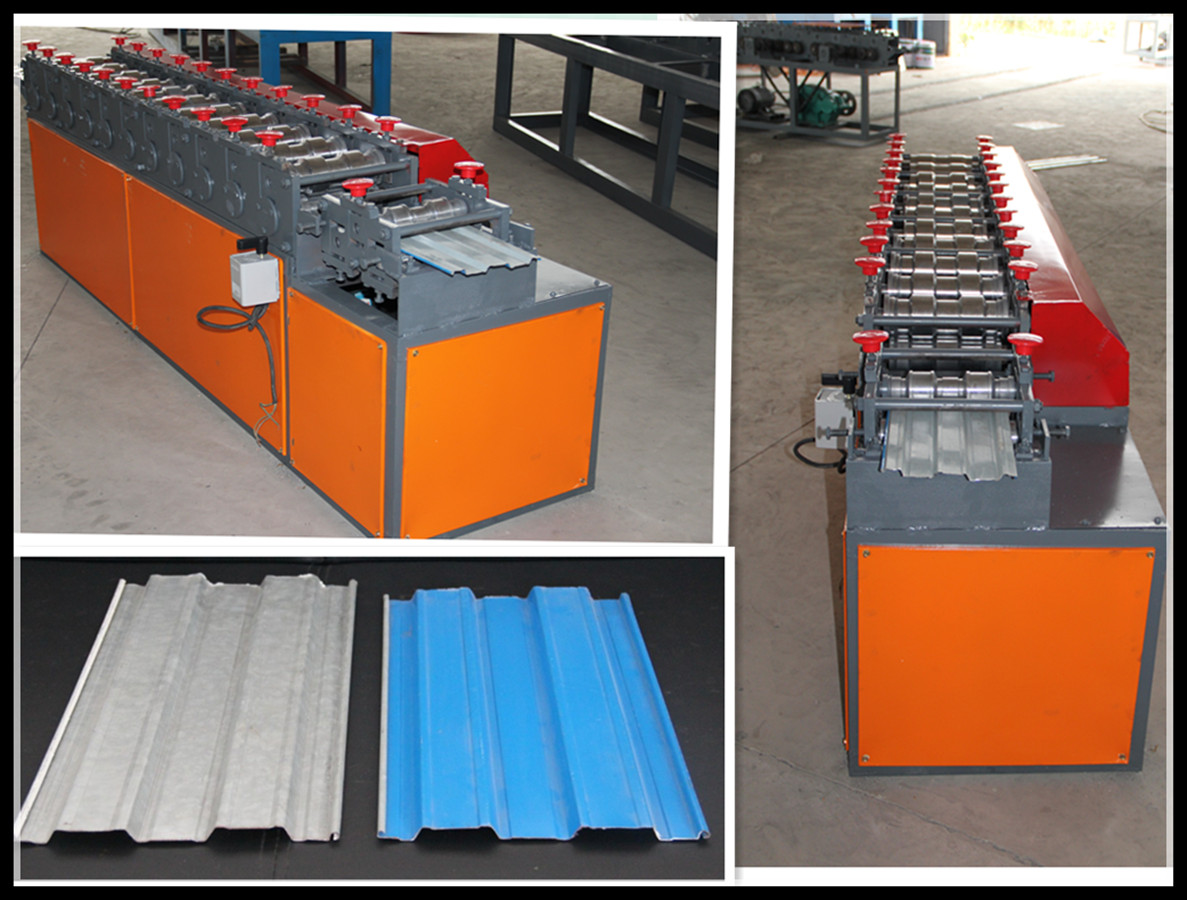

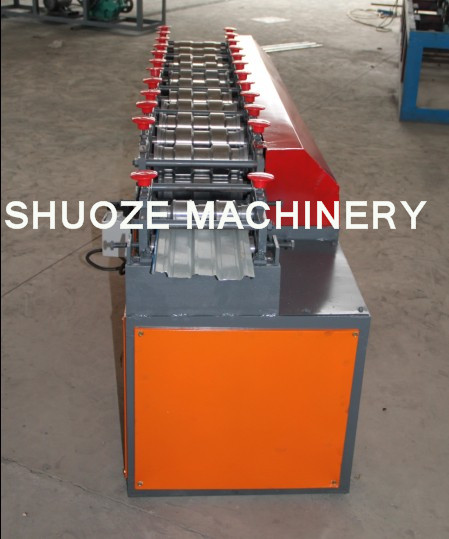

250 type shutter door forming machine
Product Name:
250 type shutter door forming machine
No. :
Product Description:
250 type shutter door forming machine
1. CE and ISO certification
2. fully automatic
3. we are factory
2. fully automatic
3. we are factory

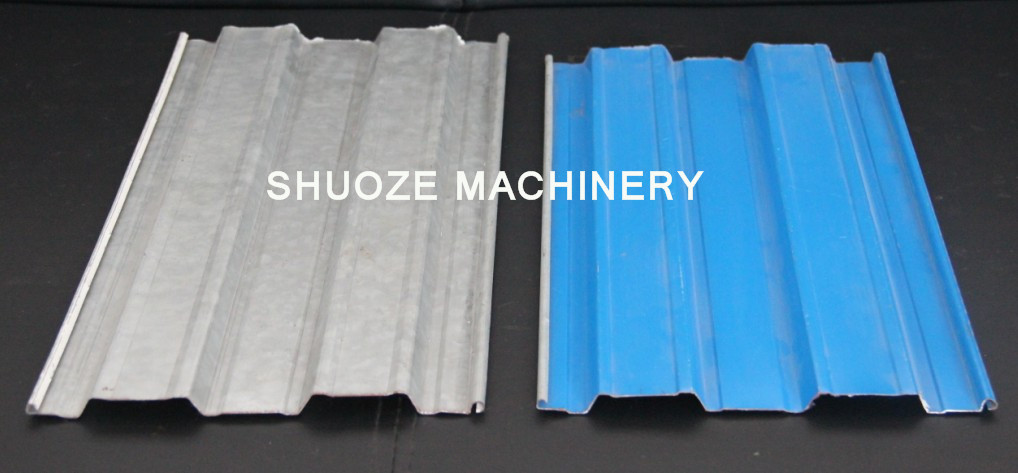

1. profile with size
Raw material width:250mm
panel width after forming:200mm
material thickness:0.3-0.8mm
these sizes can be changed as your need.
2. machine parameters|
Performances
|
Parameters
|
|
|
Suitable material
|
Zinc coated sheet or galvanized coil or colored coil
|
|
|
Suitable material
|
Feeding width 250 mm(raw material width can be changed as your need)
thickness 0.3-0.8mm( this can be changed also)
|
|
|
Productivity
|
6-10m/min
|
|
|
Roller forming steps
|
12 steps forming
|
|
|
Roller material
|
Bearing steel with quenched treatment 55-60°C
|
|
|
Diameter of active shaft
|
φ40mm
|
|
|
Main machine body
|
thick groove steel welded structure
|
|
|
Power
|
3KW motor +250 type reducer
|
|
|
Shear
|
Fly saw
|
|
|
Transmission
|
Gear and chain
|
|
|
Voltage
|
AC380V/50HZ/3 phase
|
|
|
Size(length*width*height)
|
3000*600*900MM
|
|
|
Component
|
Upgrade decoiler-forming part
|
|
