High speed Roof panel Roll Forming machine Line
Product Name:
High speed Roof panel Roll Forming machine Line
No. :
Product Description:

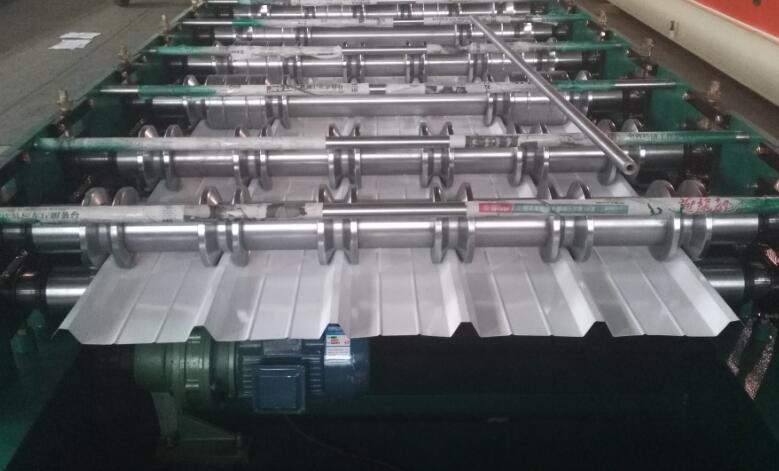

High speed Roof panel Roll Forming machine Line

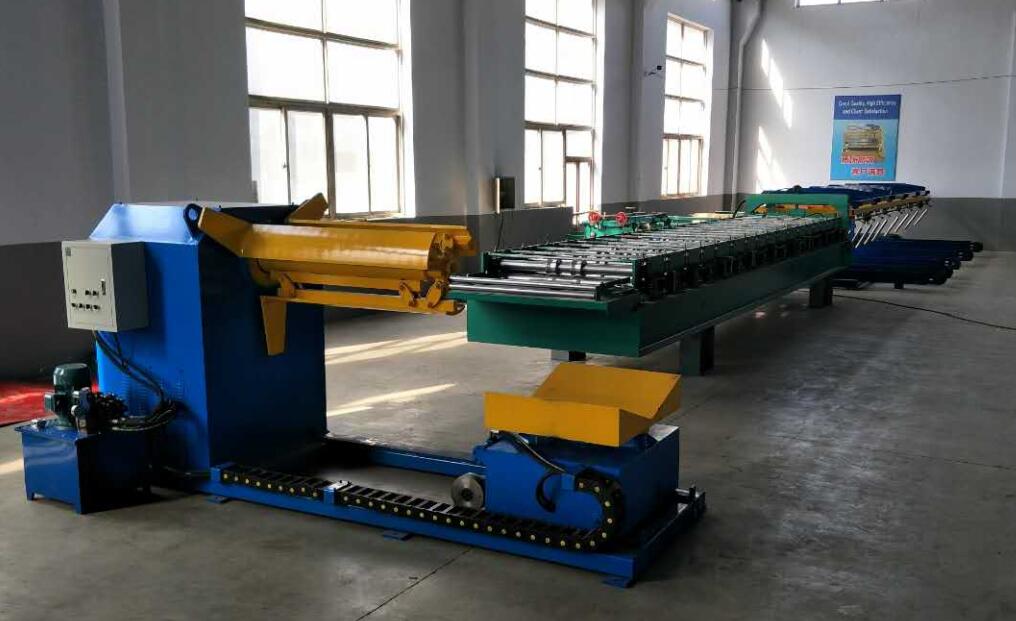

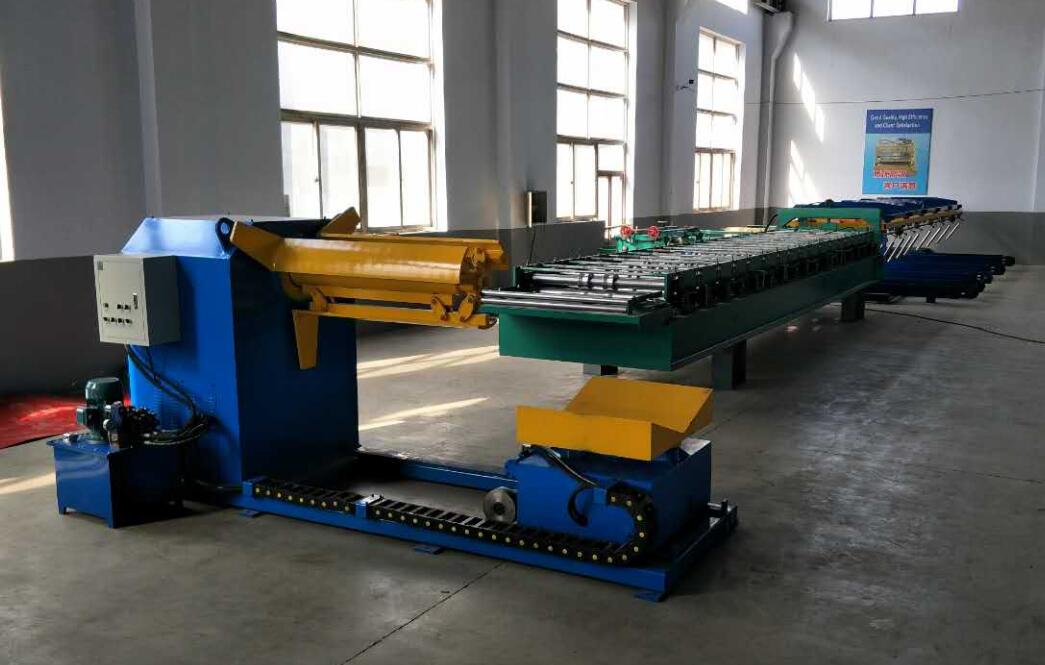

This compete line include auto decoiler, main forming machine, Auto stacker.
machine cutting speed is 25m/min

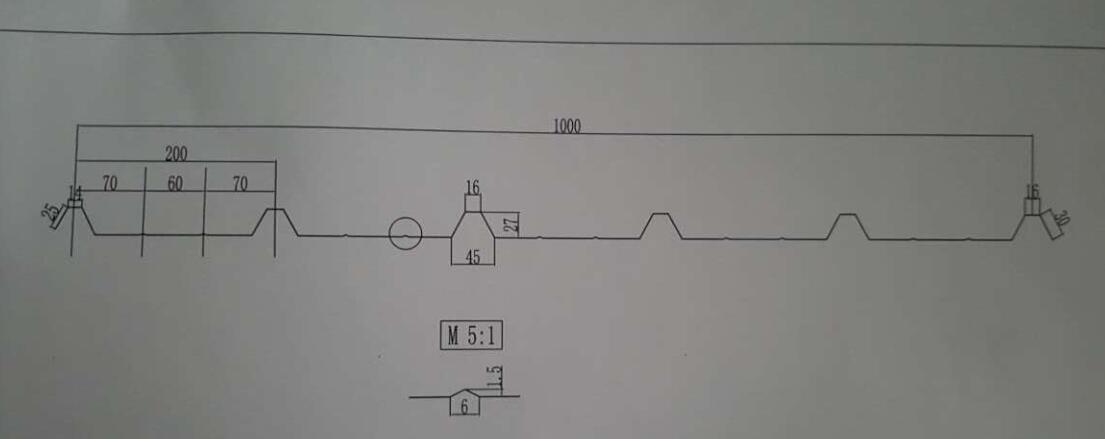

1. profile with size
machine cutting speed is 25m/min
1. profile with size
2.Roof panel Roll forming machine parameter
|
Performances
|
Parameters
|
|
|
Suitable material
|
galvanized coil/ colored coil
|
|
|
Material size and thickness
|
Raw material width:1219mm
Thickness:0.25-0.8mm
|
|
|
Productivity(cutting)
|
20-25m/min
|
|
|
Roller forming steps
|
18 steps
|
|
|
Roller material
|
45# steel after heating treatment and with chromium
|
|
|
Diameter of active shaft
|
Φ75mm
|
|
|
Main machine structure
|
400H
|
|
|
Wall plate
|
20mm
|
|
|
Power
|
5.5 KW hydraulic hose motor
|
|
|
Shear
|
Hydraulic shear, blade material CR12
|
|
|
Transmission
|
1’’ chain hanging inside of main structure
|
|
|
Control system
|
Delta PLC computer control system with Delta inverter to ensure precision; Winwen color touch screen.
Program is made by English, working mode: automatic and manual
|
|
|
Hydraulic system
|
5.5kw hydraulic motor and large oil pump
|
|
|
Voltage
|
380V/3 phase/60hz
|
|
|
Stacker
|
8000mm long , one set
|
|
|
Size(length*width*height)
|
8600*1400*1500MM
|
|
|
Weight
|
5000kgs
|
|
|
Component
|
forming part-shear blade device--hydraulic system-PLC computer control cabinet-stacker
|
|
