Floor deck roll forming machine
Product Name:
Floor deck roll forming machine
No. :
Product Description:

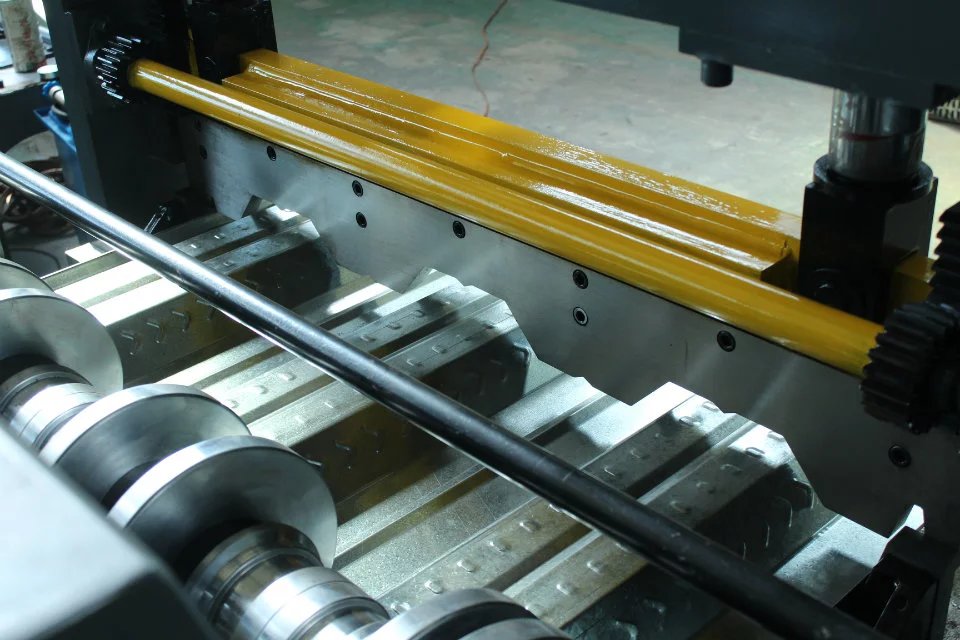

Floor deck roll forming machine

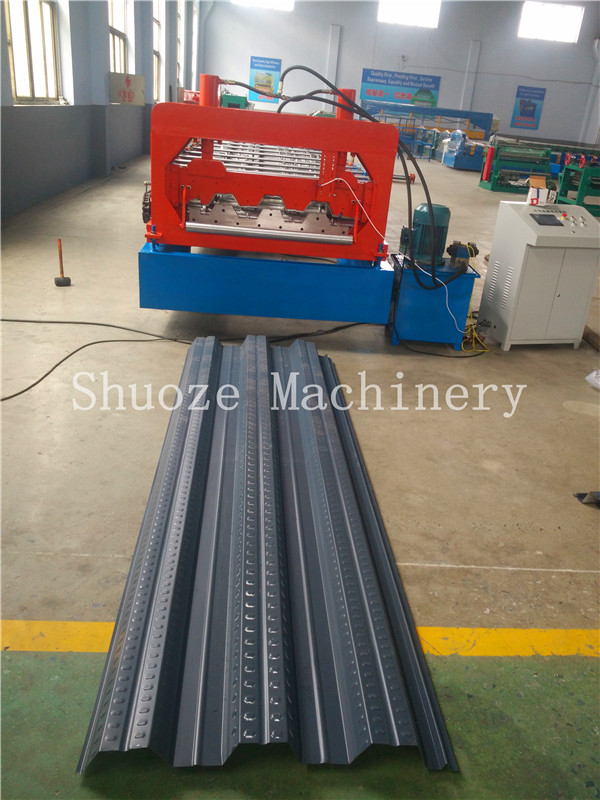

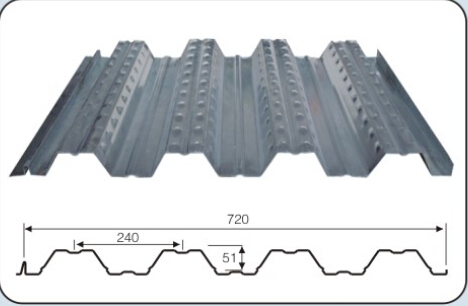

1. Profile with size
Components of line:
|
NO |
Name |
Unit |
Qty |
|
1 |
Manual decoiler |
set |
1 |
|
2 |
Main machine for roll forming |
set |
1 |
|
3 |
PLC Control system |
set |
1 |
|
4 |
Hydraulic system |
set |
1 |
|
5 |
Post cut |
set |
1 |
|
6 |
Stacking |
set |
1 |
2.Technical specification
(1) Suitable material: aluzinc/galvanized steel/colored coil
(2) Thickness of the plate : 0.75-1.5mm
(3) Productivity :8-12m/min
(4) Roller steps :24 rows

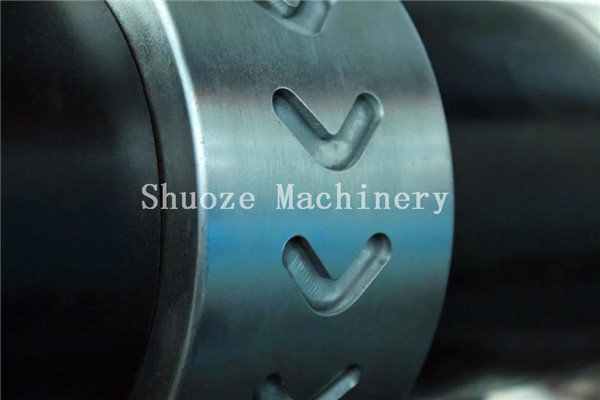

(5) Roller material: 45# steel heating treatment and with chromium
(6) Diameter of active shaft: 90mm
(7) Wall thickness of the main forming machine: 20mm steel plate
(8)Main forming machine body : 400mm工 steel
(9) Transmission chain is 1.5’’;
Reducer is 18.5kw Xingxing Cycloid which works stably and no noise.
(10) Cutting hydraulic systerm adpats CDF-10 gear pump，the motor power
is 7.5kw, no noise, work stably, long life expentancy.
is 7.5kw, no noise, work stably, long life expentancy.
(11) Taida PLC control systerm, easy to operate, high precision and work stably.
(12) Cutting blade material : CR 12
(13) PLC control system(English): Taida brand
Inverter is Taida brand
Voltage: 3phase/380V/50Hz
(14) Dimensions of major structure:14500mm*1200mm*1000mm
(15) Weight: about 16 ton.
Note： the machine dimensions and weight are an approximation and that in
reality there may be a slight difference
reality there may be a slight difference

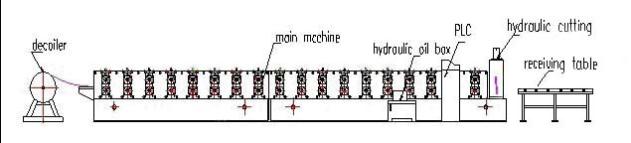

3. Processing technique and deployment
Manual decoiler—Roll forming machine—PLC system—Hydraulic system
－Post cut—Stacking
－Post cut—Stacking
Components of line:
|
NO
|
Name
|
Unit
|
Qty
|
|
1
|
Manual decoiler
|
set
|
1
|
|
2
|
Main machine for roll forming
|
set
|
1
|
|
3
|
PLC Control system
|
set
|
1
|
|
4
|
Hydraulic system
|
set
|
1
|
|
5
|
Post cut
|
set
|
1
|
|
6
|
Stacking
|
set
|
1
|
