Tile Roll Forming machine
Product Name:
Tile Roll Forming machine
No. :
:
:

Product Description:

Tile Roll Forming machine for Saudi Arabia market with high speed 4m/min

This tile machine working speed up to 4m/min. it highly improved the working efficiency.

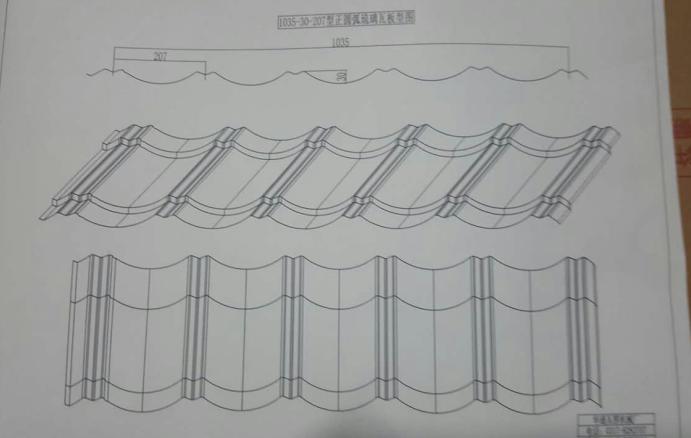

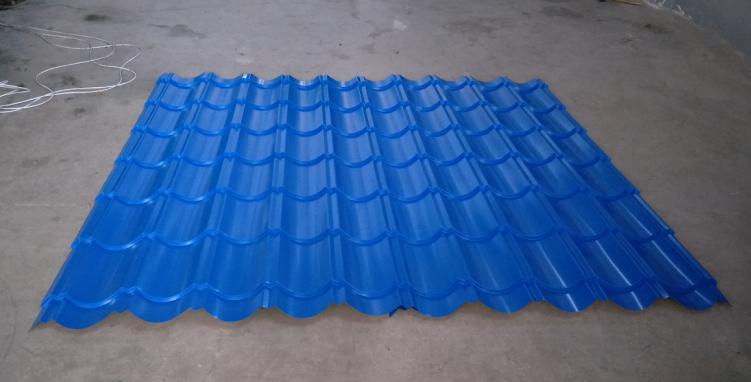

1. profile with size
    Raw material width 1220mm

panel cutting type as follow

2. parameter of tile forming machine
Performances
Parameters

Suitable material
galvanized coil/ colored coil
Material size and thickness
Raw material width:1219mm
Thickness:0.25-0.8mm
Productivity(cutting)
4m/min(machine work with servo motor)
Roller forming steps
12 steps
Roller material
45# steel after heating treatment and with chromium
Diameter of active shaft
Φ75mm
Main machine structure
400H
Wall plate
18mm
Power
5.5KW hydraulic hose motor
Shear
Hydraulic shear, blade material CR12
Transmission
1’’ chain hanging inside of main structure
Control system
Delta PLC computer control system with Delta inverter to ensure precision; Winwen color touch screen.
Program is made by English, working mode: automatic and manual
Voltage
380V/3 phase/60hz
Size(length*width*height)
7000*1400*1500MM
Weight
4000kgs
Component

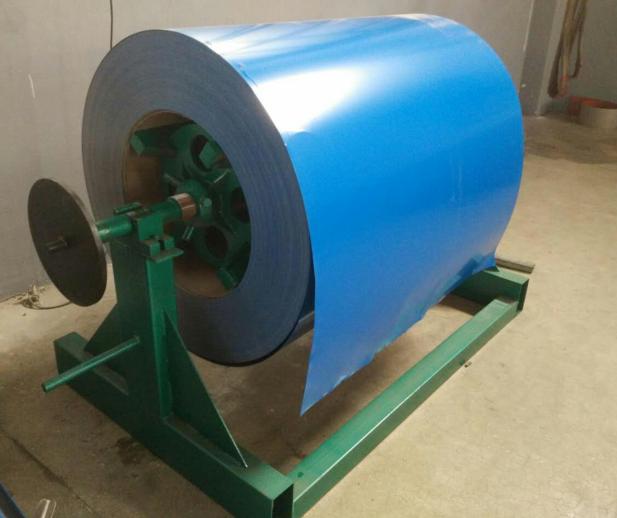

Manual decoiler-forming part-shear blade device--hydraulic system-PLC computer control cabinet

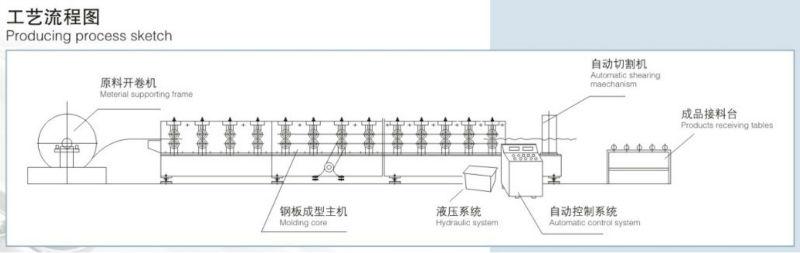

3.  work flow

4. manual upgated decoiler loading 6 tons
