Master 1000 Roll Former for US market
Product Name:
Master 1000 Roll Former for US market
No. :
:
:

Product Description:

 Master 1000 Roll Former for US market

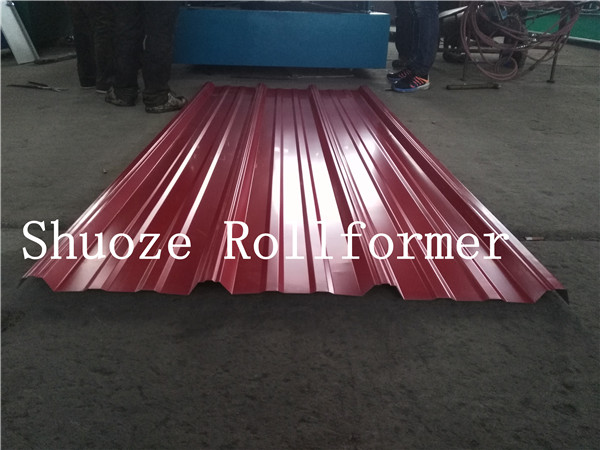

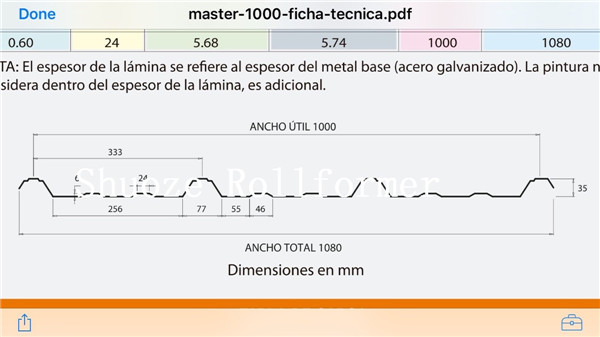

1. profile with size




2. Rollformer parameters

Performances

Parameters



Suitable material

galvanized coil/ colored coil

Material size and thickness

Raw material width:48’’

Thickness 24- 29 guage

Productivity

8-12m/min

Roller forming steps

      17 steps synchronous forming

Roller material

45# after heating treatment and with chromium

Spacer, balance bar, screw

All do chromium to ensure beautiful appearance

Diameter of active shaft

Φ74mm

Main machine structure

350H

Wall plate

16mm

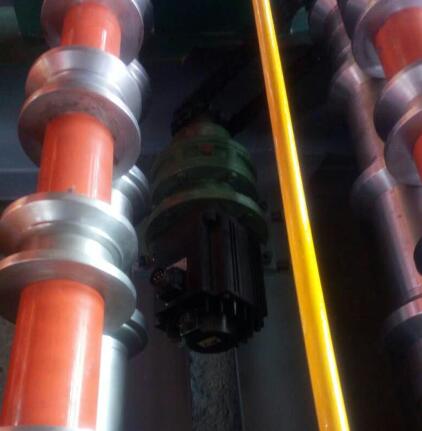

Power

3KW main motor,cycloidal reducer work stable and no noise

Shear

Hydraulic shear, blade material CR12

Transmission

1’’ gear chain

Control system

Delta PLC computer control system with Delta inverter to ensure precision; Winwen color touch screen.

Program is made by English, working mode: automatic and manual

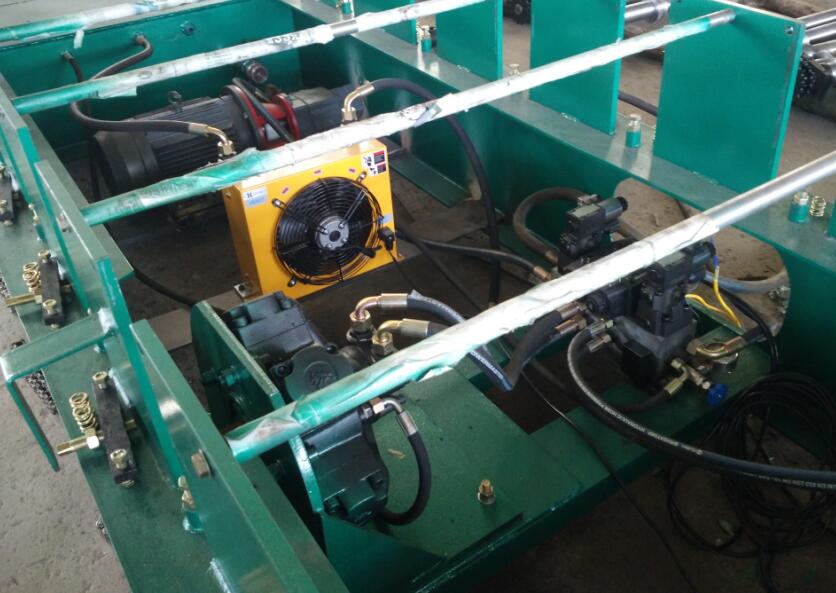

Hydraulic system

3kw hydraulic motor and large oil pump

Voltage

AC220V/60HZ/3 phase

Set off table

Two pcs, 8 step roller and adjustable screw, each is 3000mm long

Size(length*width*height)

7300*1400*1500MM

Weight

4700kgs

Component

Uncoiler -forming part-shear blade device--hydraulic system-PLC computer control cabinet-set off table


3. If you need machine work high speed. we could use servo motor or hydraulic hose motor to keep speed at 20-25m/min



4. we sell more than 100 set rollformer to US market already. We are familar with this market.
    you are welcomed to get price from us. we are capable of design machine as your profile.
